Retro Tube Amplifier



Retro Tube Amplifier

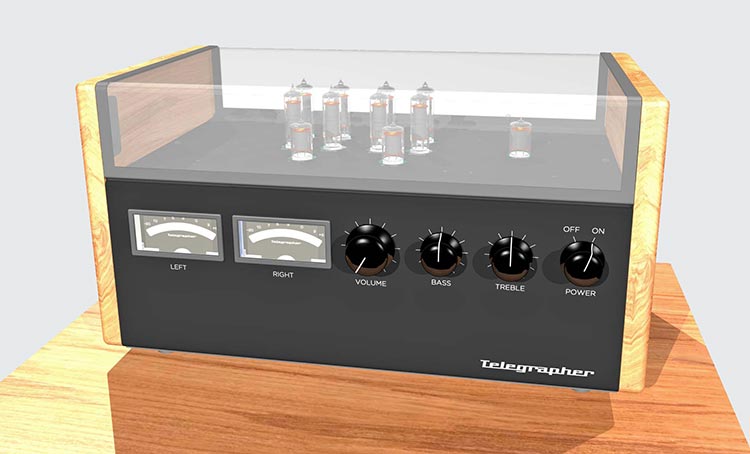

Retro-Amplifier-01



      Industrial design of a tube-type stereo amplifier by Steve Hines in 2016, including the mechanical design and part drawings.  The work involved knowledge of materials and manufacturing techniques, assembly technique, and included full engineering assembly drawings, and individual part drawings, drilling jig and vendor and parts lists, and the 3D computer model rendered here.

Retro-Amplifier-02-rear-625w



Retro-Amplifier-03-750w




    This amplifier is shown only as an example of past industrial design services.  HinesLab currently offers industrial design, photographic equipment design, as well as a variety of licensable technology.



      This amplifier is not for sale through HinesLab.  When this amplifer becomes commercially available, I will add a link.
