Flight Simulator

Flight Simulator

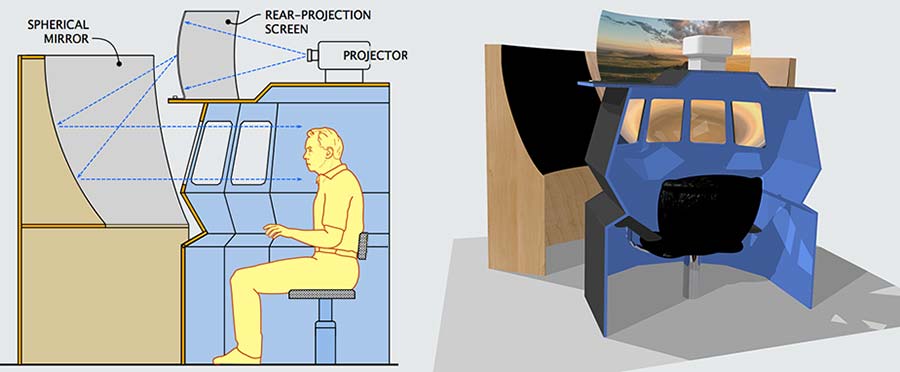

       This is a classical catadioptric optical layout where the rear-projected image is reflected in the spherical mirror and appears to be at an infinite distance.


The vacuum-support for the aluminized Mylar mirror and one version of the pilot’s window.


                 Wooden mirror-vacuum forms.                                 Steve Hines.


The pilot’s view of the infinity image in the spherical mirror.


      This is not a product for sale.  This project is shown only as an example of past engineering by Steve Hines who currently offers consulting in the area of opto-mechanical equipment design, as well as a variety of licensable technologies.
