A silent-running, shirt-pocket sound movie camera developed by Steve Hines at the Kodak Research Laboratories in 1976.  The design goal was to develop an automatic, pocketable movie camera to encourage filmmaking.

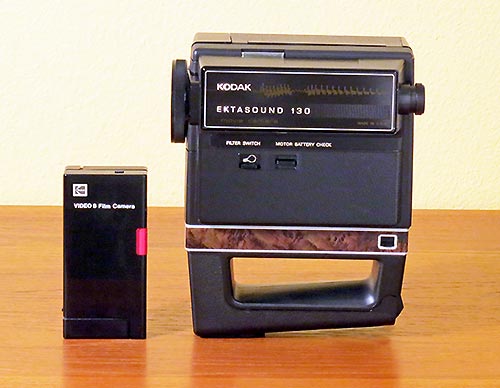

The 5-oz. Shirt-Pocket Movie Camera beside the 3-lb. Kodak Ektasound 130.

The smallest 8mm movie cameras available in 1976:

	Kodak non-intermittent experimental	Kodak Ektasound 130	Agfa Microflex Sensor	Fujica P1	Bolsey 8
Film format	frame size of Super 8	Super 8 sound	Super 8	Single 8	Standard 8
Run time- min.	3-1/3	3-1/3	3-1/3	3-1/3	2
Frame rate	15 fps	18 fps	18 fps	18 fps	16 fps
Shutter angle	360°	230°	180°	160°	≈ 150°
Duty cycle	100%	63%	50%	44%	≈ 42%
Weight, grams	142	1250	500	530	400
Volume, cu. in.	10	180	31.5	31.5	11.1
Camera operating noise	virtually silent similar to a tape recorder	usual chatter of intermittent film pull down	usual chatter of intermittent film pull down	usual chatter of intermittent film pull down	usual chatter of intermittent film pull down
Microphone	built in	external	—	—	—

      This shirt pocket camera does not use the typical blocking shutter.  When taking a shot, the camera is always exposing frames.  An optical differential causes the image to chase continuously moving film, giving the equivalent of a 360° shutter.

      The pocket camera uses 8mm wide, mag-striped film, almost as flexible as audio tape.  Instead of perforations, the camera exposes optical fiducial marks beside each frame, used later by the video film player to register the film.

      The concept for this non-intermittent movie camera was first tested by building a Super 8 projector with the identical optical differential.  There is no rotating shutter to block light.  Viewers can watch movies without the noise of the intermittent film pull down.  The only sound is the sound in the scene.  The sound-recording head is at the film gate, so there is no time gap between the picture and sound.

      Movies from the camera are viewed on a television using a Kodak VP-1 or VP-X video film player.  Conceived as a consumer camera, the small size and near-silent film movement makes it useful as a covert spy camera.

    The size is kept to a minimum by attaching the film cartridge and battery to the outside of the camera to complete the form, rather than inserting them inside a larger camera.  The quiet-running film transport allows the microphone to be built in.

The pocket movie camera with film cartridge and battery removed, showing capstan drive, film take-up toothed drive, taking lens, shutter release, viewfinder opening, viewfinder focus, film gate, and sound-recording head.	The battery, shutter-release, flywheel, taking lens, optical differential, motor, speed regulator, fiber-optic viewfinder, microphone, and sound amplifier on folded flex circuit.	The fiber-optic viewfinder, twisted 180° to create the erect image for the eyepiece, shifted vertically and laterally to clear other parts in the camera and to place the eyepiece on center of the camera.

      In comparison to today’s digital smartphone cameras, this pocket movie camera may not seem that small; however, to put this in the context of 1976, this camera was developed when:

• TV news was shot on 16mm B/W film.
• 5 years before the IBM PC.
• 6 years before music CD’s.
• 8 years before the first 8mm camcorder.
• 19 years before GPS navigation in cars.
• 31 years before the iPhone.

Comments:

      During the 9 months of the pocket camera’s development, competing B/W video cameras and shoulder-strap reel-reel recorders were coming to the market.  As a further hurdle, the pocket camera required a new film format, new projectors or video film players, etc.  Interest in video had become too strong to create this new film format.

      Once Kodak business confidential, this technology by agreement between Eastman Kodak and HinesLab is available for license from HinesLab.  It also serves as an example of technology which can be developed for clients of HinesLab on a contract basis.  For any questions, please contact Steve Hines at:
